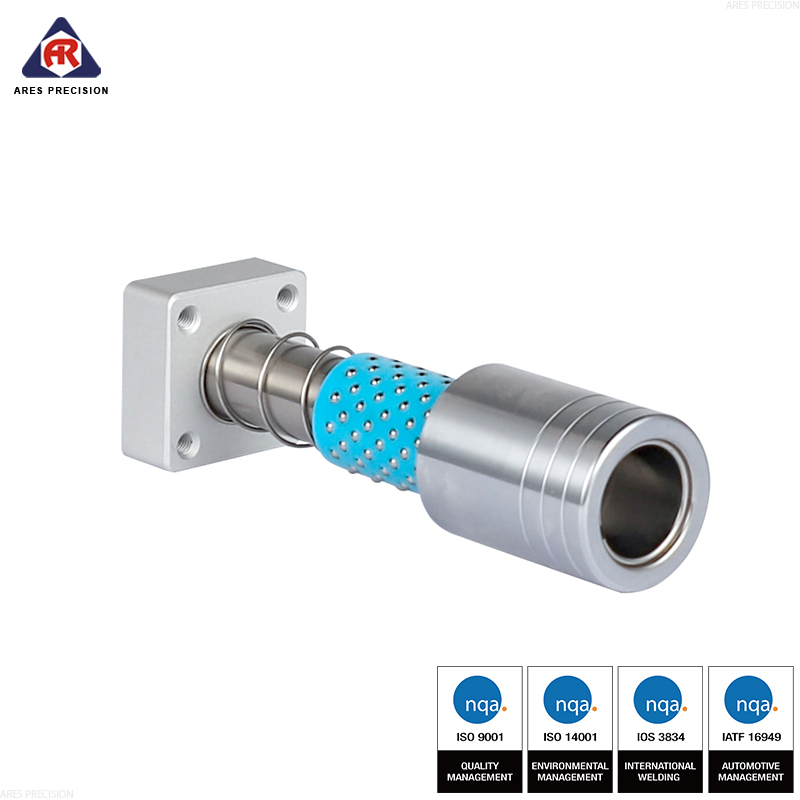

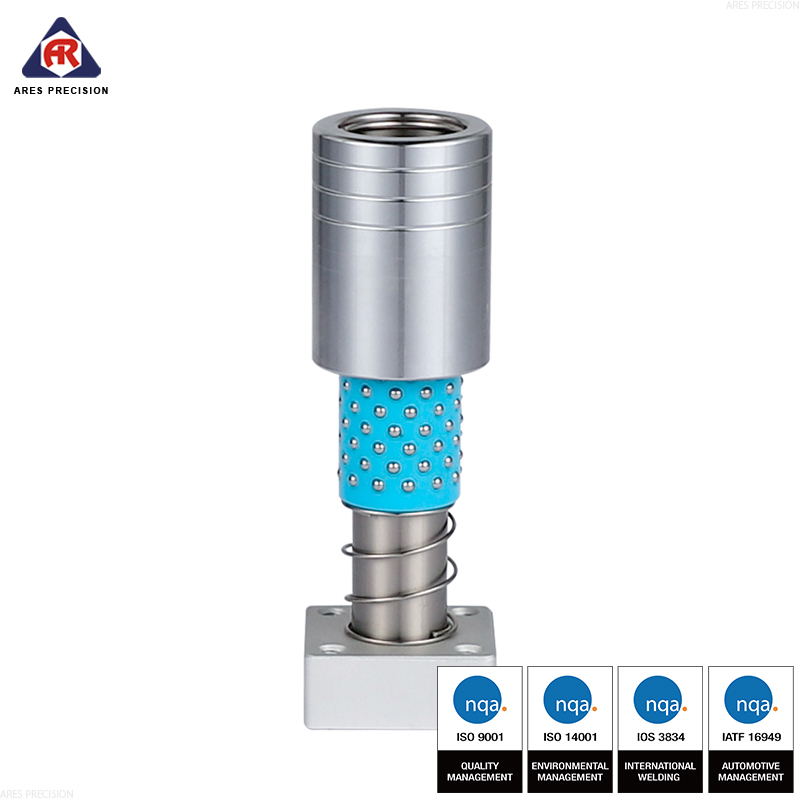

The mold guide pin bushing is usually made of high-quality wear-resistant materials, such as high-hardness alloy steel or special copper alloy. This material selection gives it excellent wear resistance and fatigue resistance, and can withstand the repeated friction and impact between the guide pin and the bushing during the frequent opening and closing of the mold. In each working cycle of the mold, the guide pin slides precisely along the inner wall of the bushing. The high-quality material ensures that this sliding process is smooth and smooth, effectively reducing the metal debris generated by wear and preventing it from damaging other precision parts inside the mold, thereby maintaining the overall cleanliness and precision of the mold.

From the perspective of structural design, the mold guide pin bushing has extremely high dimensional accuracy and maintains a strict clearance fit with the guide pin. This tiny and precise gap is the subtlety of its design. It can provide the guide pin with just the right guiding effect to ensure that the upper and lower molds of the mold are accurately aligned during the mold closing process, and will not cause the mold to shake or dislocate due to excessive clearance, affecting the molding quality of the product. For example, in plastic injection molds, precise mold closing is the key to manufacturing plastic products with precise dimensions and perfect appearance. The mold guide pin bushing is like a precise ruler, guiding the various parts of the mold to work together, so that the plastic melt can be evenly distributed in the mold cavity, and finally forming a product that meets the design requirements.

During the long-term use of the mold, the mold guide pin bushing also has good lubrication performance. Its inner wall is usually equipped with a special lubrication channel or oil storage tank, which can store an appropriate amount of lubricating oil and automatically form a uniform oil film when the guide pin slides. This oil film further reduces the friction coefficient between the guide pin and the bushing, reduces energy loss, and also helps to dissipate heat, avoiding excessive component temperature due to frictional heat generation and affecting mold performance. In addition, good lubrication performance can also extend the service life of the mold guide pin bushing, reduce the maintenance frequency and cost of the mold, and improve production efficiency.

The mold guide pin bushing is closely connected and cooperates with other parts of the mold. It cooperates with the guide pin to provide stable guiding support for the opening and closing action of the mold; the connection with the template is firm and reliable to ensure that it will not loosen or deform when subjected to a large clamping force. In the entire mold system, the mold guide bushing is small in size, but it is like a key screw that maintains the normal operation order of the mold. Once a failure or excessive wear occurs, it will directly affect the mold's precision, production efficiency and even product quality.

The mold guide bushing has become an indispensable member of the mold parts family due to its high-quality materials, precise structural design, good lubrication performance and close cooperation with other parts. It is a strong guarantee for the high-precision operation and long life of the mold. It plays an irreplaceable key role in the field of mold manufacturing and industrial production, and helps the efficient and high-quality molding of various products.
